TF1100 Transit-Time Ultrasonic Flowmeter

♦  Dual channel non-invasive transducers to ensure high accuracy 0.5% of the flow meter. ♦  Easy to install, cost effective, and require no pipe cutting or processing interrupt. ♦  Wide liquid temperature range: -35℃~200℃. ♦  Data logger function. ♦   Aluminum or Stainless steel SUS304 sensors for your optional. ♦  Thermal energy measurement capability can be optional. ♦  For commonly used pipe materials and diameters from 20mm to 6.0m. ♦   Wide bi-directional flow range of 0.01 m/s to 15 m/s

♦Dual channels Insertion transducers to ensure high accuracy 0.5% of the flow meter ♦Hot-tapped installation, no pipe line flow interrupted. ♦No moving parts, no pressure drop, no maintenance. ♦Spool-piece transducer for best accuracy and better long-term stability. ♦High temp. Insertion transducers are suitable for high temperature of -35℃~150℃. ♦Wide bi-directional Flow range of 0.03 to 36 m/s, and wide range of pipe sizes from DN65 to DN6000. ♦Data logger function. ♦The heat measurement function by configuring with paired temperature sensors

♦50-hour battery (rechargeable), 4.3'' color LCD mult-line display all integrated into a rugged, watertight enclosure. ♦± 0.5% high accuracy flow measurement. ♦Data logger function. ♦The heat measurement function by configuring with paired temperature sensors. ♦Non-invasive transducers. ♦Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃. ♦Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm. ♦Lightweight and easily transportable in box. ♦With the ability of Dynamic zero.

♦Works on the multi-channel transit-time principle. The accuracy is 0.5%. ♦Wide bi-directional Flow range of 0.01 m/s to 12 m/s. Repeatability is less than 0.15%. ♦3.6V 76Ah battery power supply，with lifetime over 10 years (measuring cycle: 500ms). ♦Low starting flow, super wide turndown ratio Q3:Q1 as 400:1. ♦With storage function. Can storage both forward flow and back flow  ♦Hot-tapped installation, no pipe line flow interrupted. ♦Standard output is RS485 modbus, Pulse, NB-IoT, 4G, GPRS, GSM can be optional. ♦Two channels and four channels can be optional.

♦ Hot-tapped installation, no pipe line flow interrupted. ♦ No moving parts, no pressure drop, no maintenance. ♦ Spool-piece transducer for best accuracy and better long-term stability. ♦ High temp. Insertion transducers are suitable for high temperature of -35℃~150℃. ♦ Wide bi-directional Flow range of 0.03 to 36 m/s, and wide range of pipe sizes from DN65 to DN6000. ♦ Data logger function. ♦ The heat measurement function by configuring with paired temperature sensors

♦ 50-hour battery (rechargeable), 4.3'' color LCD multi-line display all integrated into a rugged, watertight enclosure. ♦ Data logger function. ♦ The heat measurement function by configuring with paired temperature sensors. ♦  Non-invasive transducers. ♦  Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range:  -35℃~200℃. ♦ Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm. ♦ Lightweight and easily transportable in box.

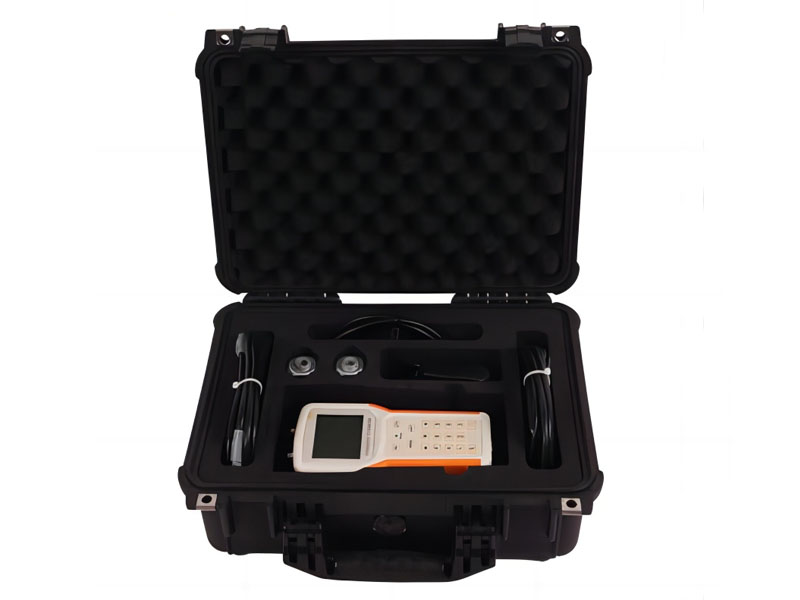

♦14 hours battery (rechargeable), back-lit 4 lines display. ♦Data logger function. ♦Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking. ♦Non-invasive transducers. ♦Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃. ♦Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm. ♦Lightweight and easily transportable in box.

♦ Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt. ♦ Wide liquid temperature range: -35℃~200℃. ♦  Data logger function. ♦ Thermal energy measurement capability can be optional.      ♦  For commonly used pipe materials and diameters from 20mm to over 6.0m. ♦ Wide bi-directional flow range of 0.01 m/s to 12 m/s.

♦14 hours battery (rechargeable), back-lit 4 lines display. ♦Data logger function. ♦Can be used for mobile measurement, flow rate calibration, data comparing, meters running status checking. ♦Non-invasive transducers. ♦Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃. ♦Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm. ♦Lightweight and easily transportable in box.
